THE
USP COMPACT SERIES
The

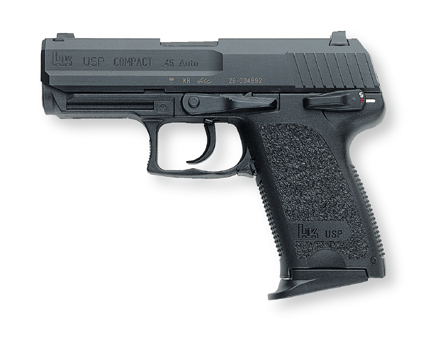

HK USP Compact is a small frame pistol capable of firing
the most powerful cartridges in 9mm, .40 S&W, .357
SIG, and .45 ACP. Based on the full-size USP models, these
handy pistols combine compact size with optimum effective
shooting performance.
USP
Compacts are smaller and lighter than large frame USPs.
The reduction in trigger reach and grip circumference increases
concealability and enhances shooting ergonomics. Unlike
some subcompact semiautomatic pistols that use a difficult
to shoot “ two-finger grip” frame, the USP
Compact uses a narrow, full-hand grip frame with a choice
of interchangeable extended or flush-fitting magazine floorplates.
This makes the pistol easy to shoot without sacrificing
concealability.
Like their large frame predecessors, USP Compacts are designed with
the demanding needs of the American shooter in mind. Using a modified
linkless Browning-type action, the USP Compact is built to take the
punishment of high energy +P loads.
To reduce the length of the slide and barrel on the USP Compact,
the mechanical recoil reduction system found on large frame USPs
has been replaced by a specially designed flat compression spring
contained in the captive recoil spring assembly by a polymer absorber
bushing. Service life is still engineered to exceed 20,000 rounds.
Easy to shoot, simple to maintain; the USP Compact is a reliable,
safe, accurate, and highly concealable pistol.
• corrosion
proof fiber-reinforced polymer frame
•
grooved target triggers
•
polygonal bore profile for increased velocity,
easier cleaning, and longer barrel life
•
can be converted to any of nine trigger firing
modes
•
specially designed recoil spring assembly with
polymer absorber bushing
•
choice of corrosion resistant “Hostile
Environment” blued finish or
stainless steel slide
•
no snag, bobbed hammer
•
flared recurve trigger guard
•
choice of flat and extended floorplate magazines
•
one piece machined steel slide
•
universal mounting grooves for installing accessories
•
ambidextrous magazine release lever
•
contoured, extended slide release
•
extractor doubles as a loaded chamber indicator
•
patented Lock-Out Safety device
| USP
Compact Specifications |
|
Caliber
|
Capacity
|
Length
|
Width
|
Height
|
Sight
Radius
|
Barrel
Length
|
Weight
|
9mm
|
13
|
6.81
|
1.14
|
5.00
|
5.35
|
3.58
|
1.47lb
|
.357
SIG
|
12
|
6.81
|
1.14
|
5.00
|
5.35
|
3.58
|
1.47lb
|
|
.40
S&W
|
12
|
6.81
|
1.14
|
5.00
|
5.35
|
3.58
|
28oz
|
|
.45
ACP
|
8
|
7.09
|
1.14
|
5.06
|
5.83
|
3.80
|
1.60lb
|
|
TECHNICAL
DATA
|
USP
COMPACT VARIANTS
(Variant models other
than Variant 1 available by special
order and $25 surcharge)
Variant
1 DA/SAwith control lever (safety/decocking
lever) on left Variant 2 DA/SAwith
control lever (safety/decocking
lever) on right Variant 3 DA/SAwith
control lever (decocking lever)
on left
Variant 4 DA/SAwith control lever (decocking lever) on right
Variant 5 DAO with control lever (safety lever) on left
Variant 6 DAO with control lever (safety lever) on right
Variant 7 DAO with no control lever
Variant 9 DA/SAwith control lever (safety lever) on left
Variant 10 DA/SAwith control lever (safety lever) on right
|
|
|
|
